| TECHNICAL SPECIFICATIONS | |
| BG630 | |
| EngineType | Air CoolingSingle Cylinder.2-stroke |
| Mating Power | 1E48F |
| Displacement | 63cc |
| Power | 2.4kw/6500rpm |
| Carburetor type | Diaphragm |
| Mixed Fuel Ratio | 25:1 |
| Fuel consumption | 640g/km.h |
| Fuel tank | 1L |

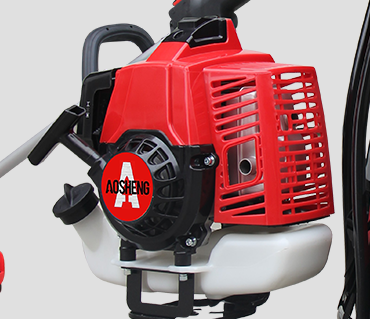

012-STROKE ENGINEDisplacement is 63CC, Mating power is 1E48F, and it has high power, high torque, and high horsepower—new design guide cover. |
![]() |
![]() |
02TUBE&FLEXIBLE SHAFTStrong 26x1.5mm shaft and 8x9 mm drive shaft. Flexible tube length 930mm, flexible shaft made of a high strength material is more durable. |

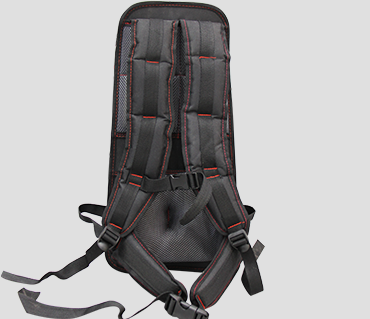

03BELTSponge foam belt and back pad, fix the human body. make users more comfortable. |
![]() |
![]() |

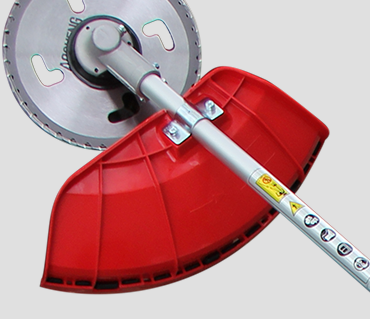

04PROTECTOR&GEAR BOXIt can offer a 420mm cut width. The nylon line diameter is 2.4mm Work efficiency increases so much. The gearbox is stronger than a normal gearbox, especially it has a 3D logo. |

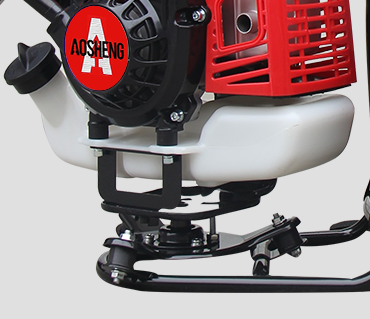

05DAMPING SPRING& FUEL TANKTriple-damping springs effect decrease the vibration. The fuel tank uses new metrical plastic, effects to protect the fuel float outside. Aluminum fuel tank bracket. |
![]() |
![]() |

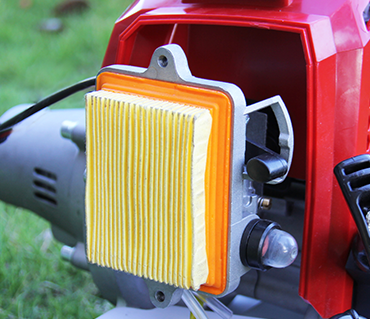

06AIR FILTERThe base of the aluminum air filter can withstand a long time of vibration, and will not be damaged. The filter paper air purification is more efficient than sponges. |
