| TECHNICAL SPECIFICATIONS | CG430GX |
| Displacement | 43cc |
| Mating Power | 1E40F-5GX |
| Power | 1.25/6500kw/r/min |
| Carburetor type | Diaphragm |
| Mixed Fuel Ratio | 40:1 |
| Work rod diameter | 26/28mm |
| Fuel tank | 1.2L |
| Weight | 10.3kg |

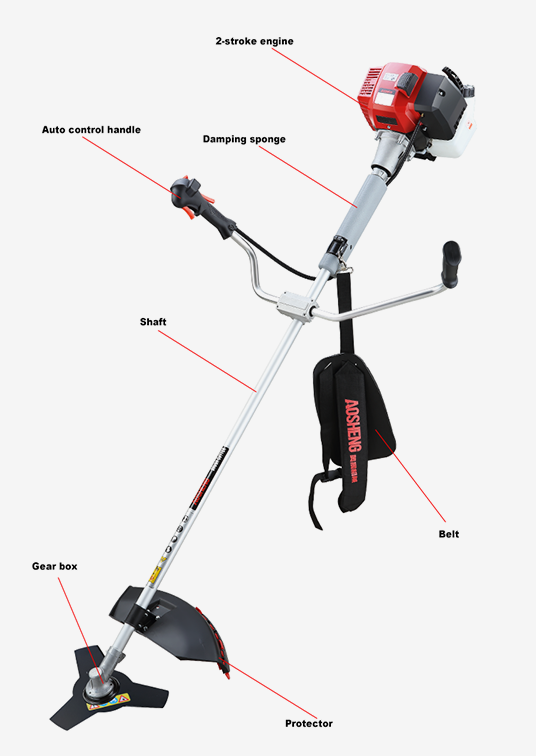

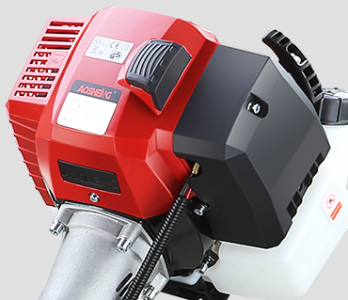

012-STROKE ENGINEDisplacement is 43CC, and Mating power is 1E40F-5B it has high power, high torque, and high horsepower. |
![]() |
![]() |

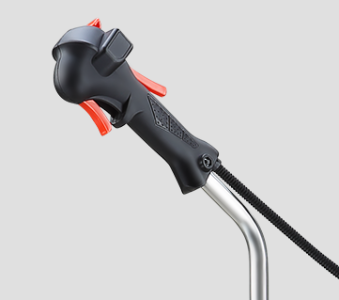

02CONTROL HANDLERubber-covered handle, with an Auto switch, makes users more comfortable. |

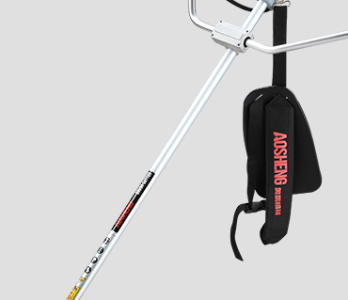

03SHAFT&BELTStrong 28x2mm shaft and 8x9mm drive shaft. The handle connector uses the rubber to reduce vibration. A single-shoulder sponge belt makes the users more comfortable. |
![]() |
![]() |

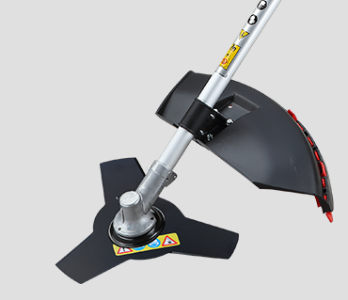

04PROTECTOR&GEAR BOXIt can offer a 420mm cut width. The nylon line diameter is 2.4mm Work efficiency increases so much. The gearbox is stronger than a normal gearbox, especially since it has a 3D logo. |

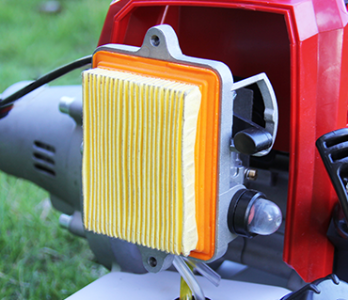

05AIR FILTERThe base of the aluminum air filter can withstand a long time of vibration, and will not be damaged. The filter paper air purification is more efficient than sponges. |
![]() |
